Hardware Design & Embedded Systems
Ut eu sem integer vitae
Our hardware design portfolio includes custom embedded boards, industrial control modules, HMI/PLC systems, IoT devices, and high-performance electronic circuits. We develop reliable, scalable, and application-specific hardware solutions from concept and schematic design to PCB layout, prototyping, and production, tailored to meet the needs of industrial automation, smart home, and embedded applications.

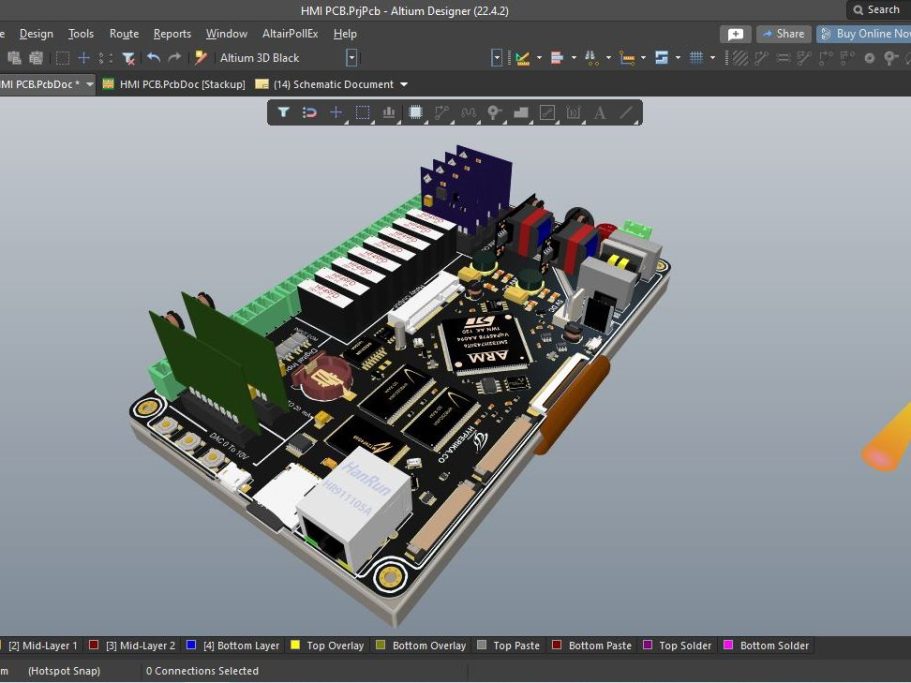

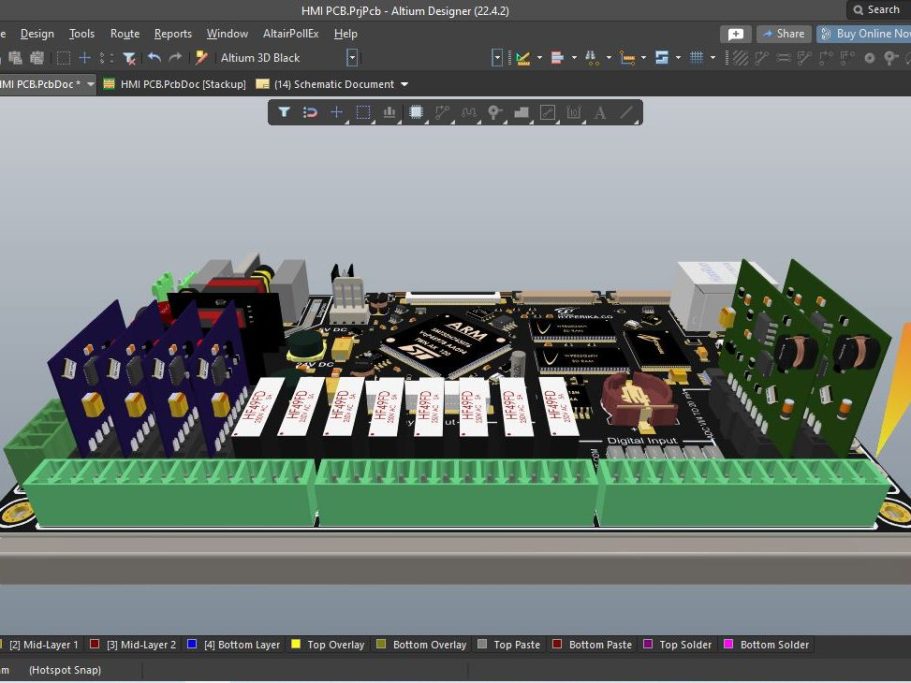

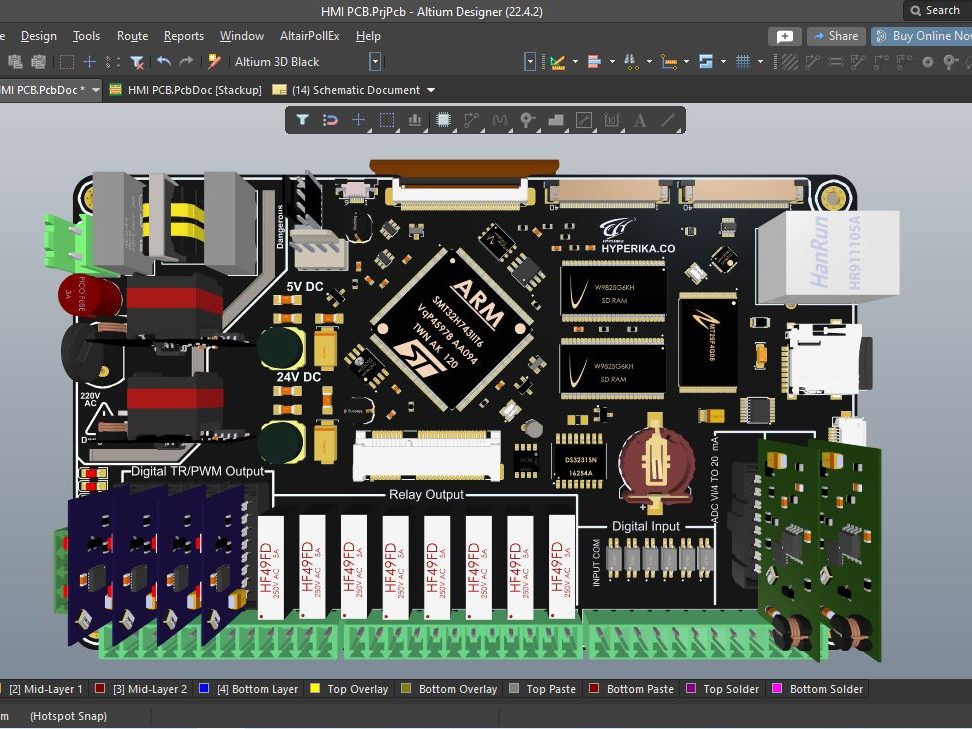

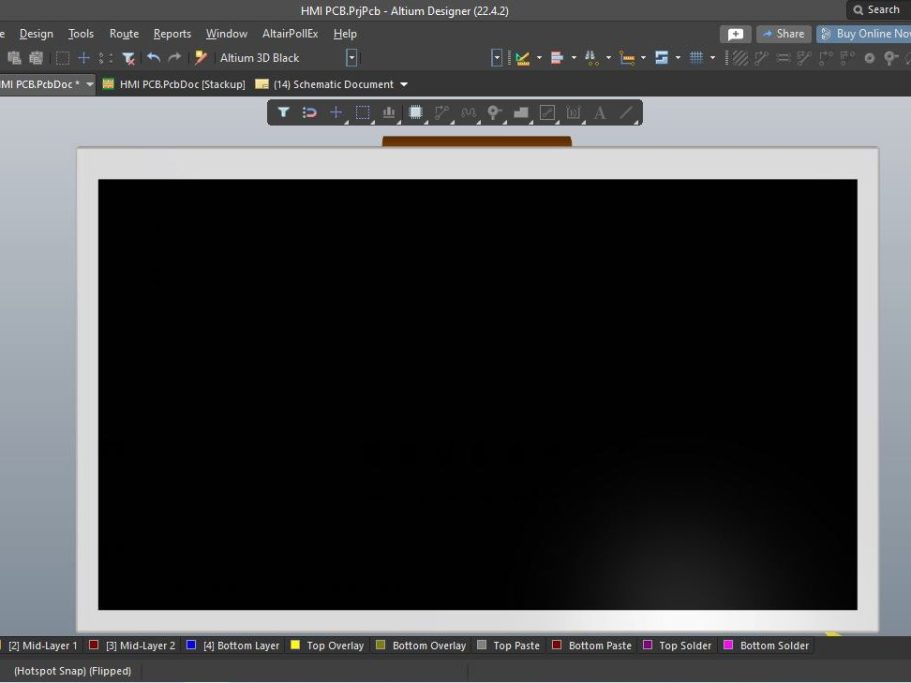

HMI PLC – Model HPK7200
Features:
- Input voltage: EMI 220V AC
- Isolated Power Supply: 24 VDC
- Isolated Power Supply: 5 VDC
- Integrated HMI + PLC (All-in-One Controller)
- 7-inch Touchscreen Display
- 6 Isolated Digital Inputs (Supports NPN/PNP)
- 7 Isolated Transistor Digital Outputs (3 A per output)
- 8 Isolated Relay Digital Outputs (5 A per output)
- 4 Hybrid Analog ADC Channels (Customizable Configuration)
- 4 Hybrid Analog DAC Channels (Customizable Configuration)
2 High-Speed Encoder Inputs (Up to 200 kHz) - 2 High-Speed Encoder Inputs (Up to 200 kHz)
- Communication Interfaces: RS485 and Ethernet
- Processor: ARM Cortex-M4
- Ethernet Interface: 10/100 Mbps
- External RTC (Real-Time Clock): Supports accurate date and time synchronization
- SD Card Data Logger: Supports data logging and storage on an SD card
- External RAM & NAND Flash: Supports high-speed data logging and long-term data storage
- 7-Inch LCD Touchscreen Display: Provides real-time monitoring, visualization, and control of system data
- 2-Channel RS485 Interface: Enables reliable communication with external devices and industrial equipment

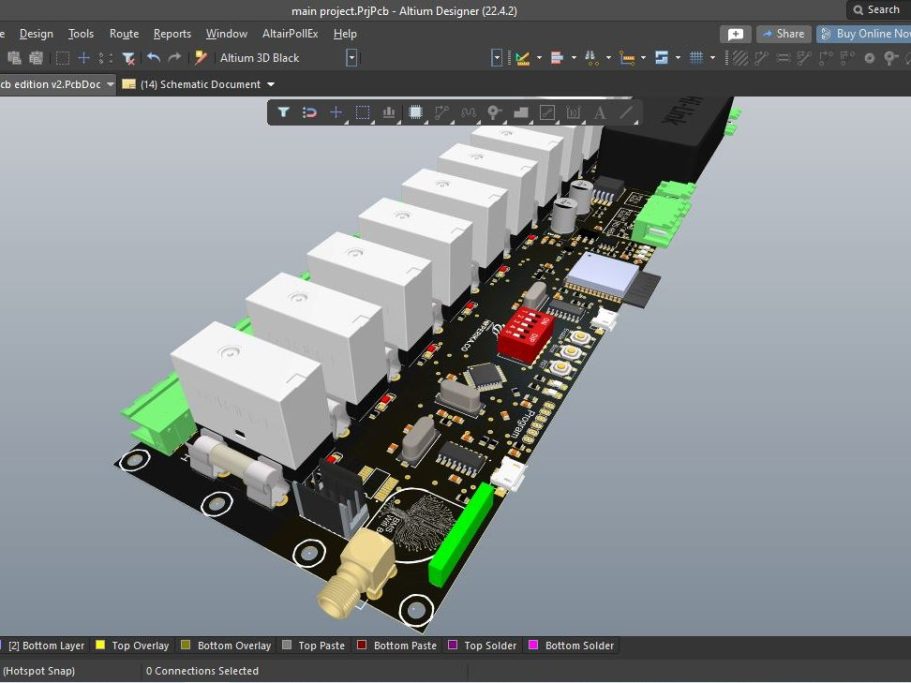

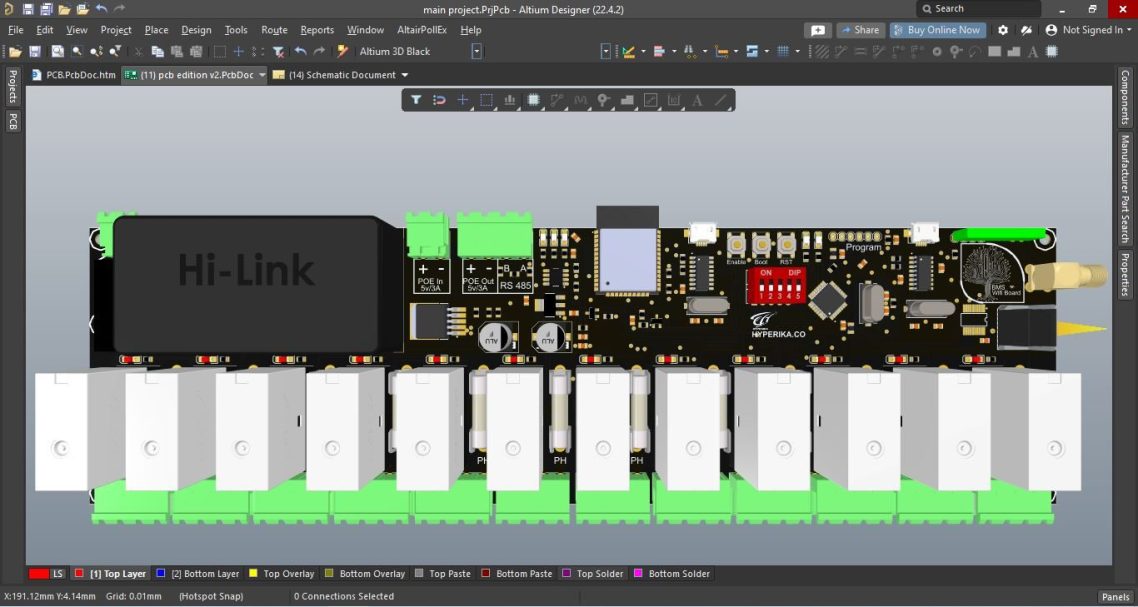

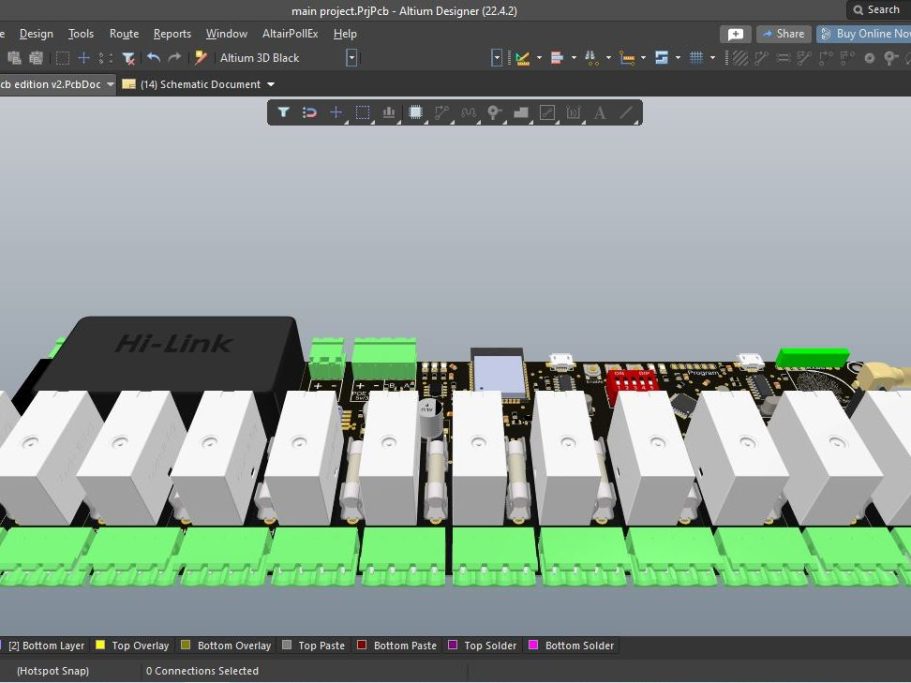

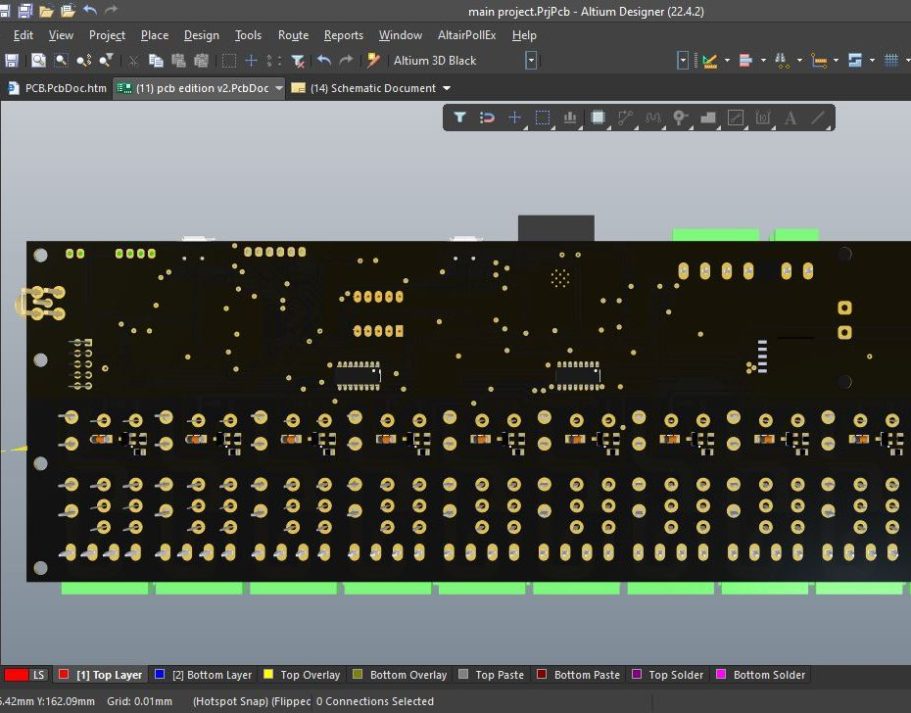

Smart Home Relay Card – Model HPK7201
Features:
- Input Voltage: 220 VAC with EMI protection
- Isolated Power Supply: 5 VDC
- 12-Channel Relay Digital Outputs: 30 A per channel for high-load switching applications
- 2-Channel USB Interface: Supports debugging and programming
- Communication Interface: RS485
- CPU: ESP32-WROOM & ATmega328
- Web Application Support: Remote monitoring and control via web interface
- 433 MHz Remote Controller: Includes 12-channel wireless remote control capability
- 4-Channel DIP Switch: Selectable programming and configuration settings
- IDC Socket Interface: Supports connection of extended relay expansion cards

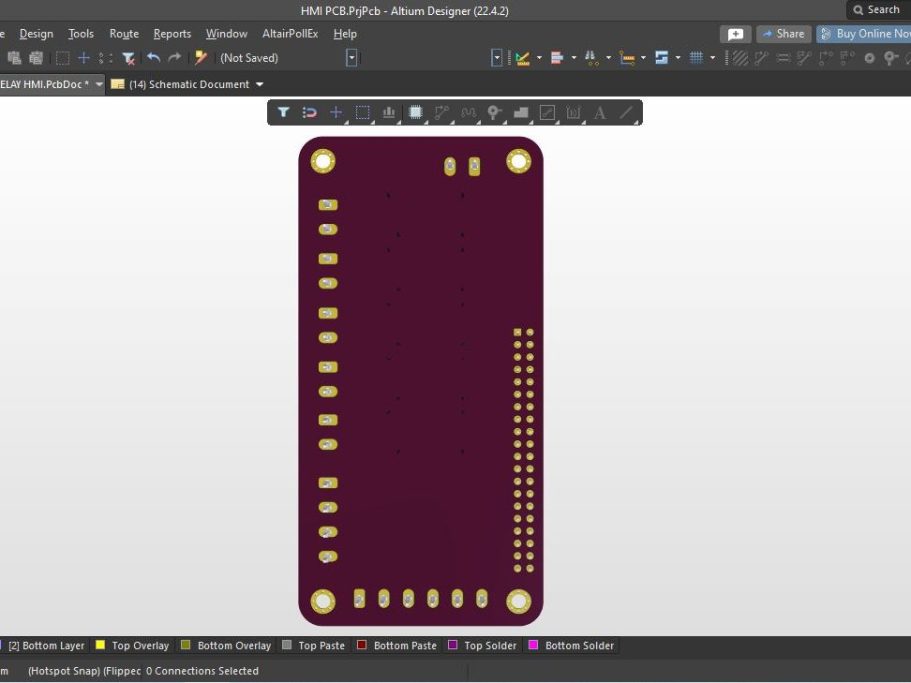

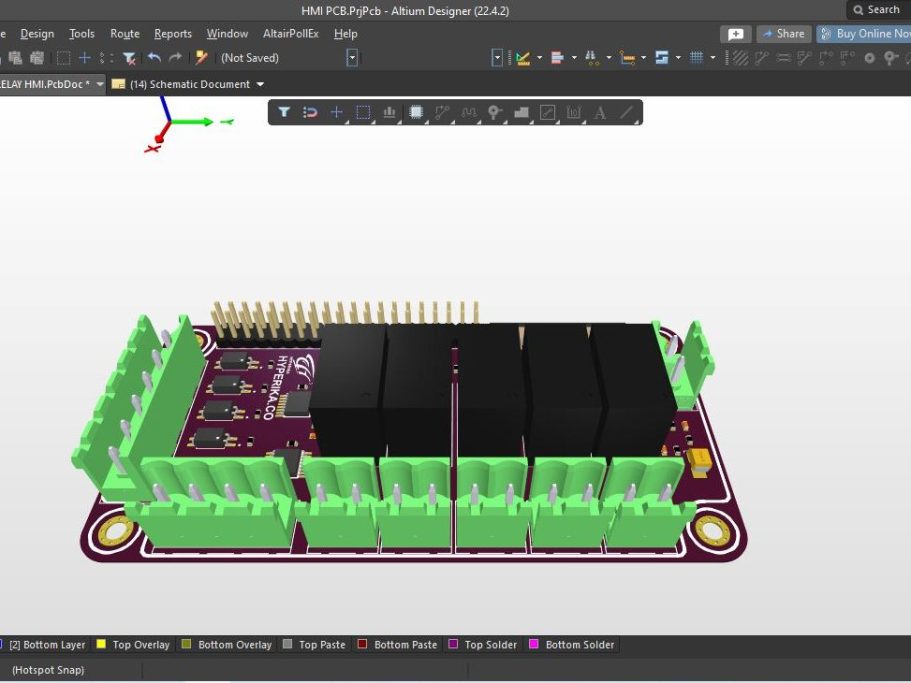

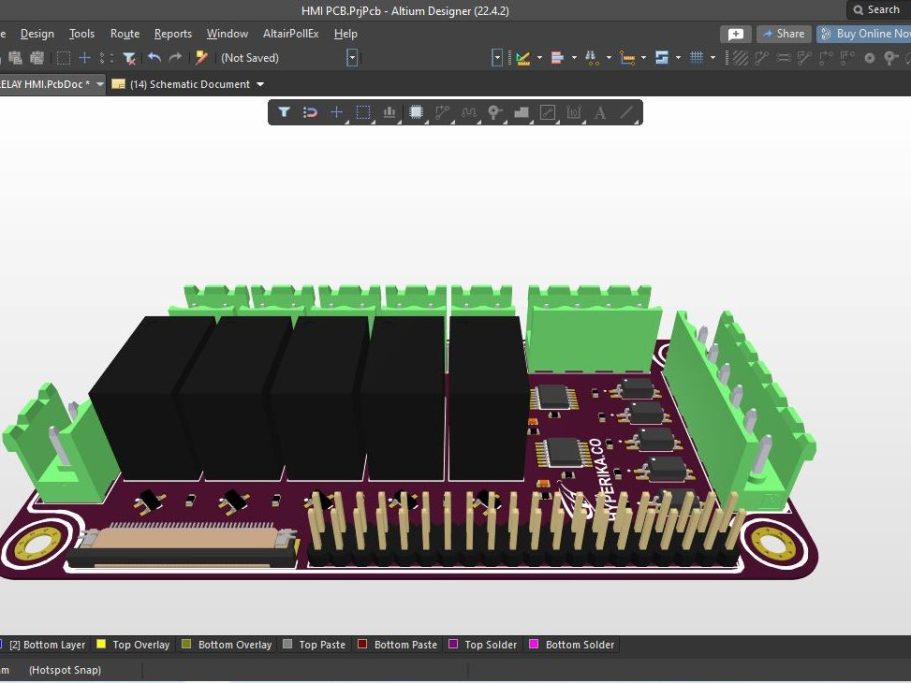

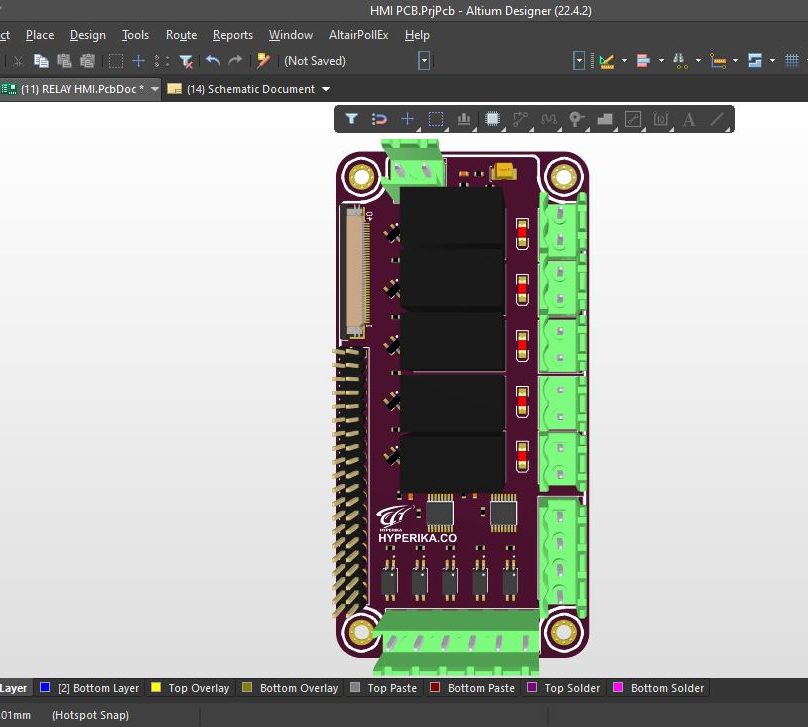

HMI Extended Relay module– Model HPK7202
- Input Voltage: 5 VDC or 12 VDC
- 5 Isolated Digital Inputs
- 4 Isolated Relay Digital Outputs: With LED status indicators (5 A per output)
- 4 Hybrid Analog ADC Channels: Customizable configuration for analog input applications
- FPC and Pin Header Connectors: Compatible with a wide range of embedded control boards for easy integration and expansion
